5-AXIS MILLING MACHINE

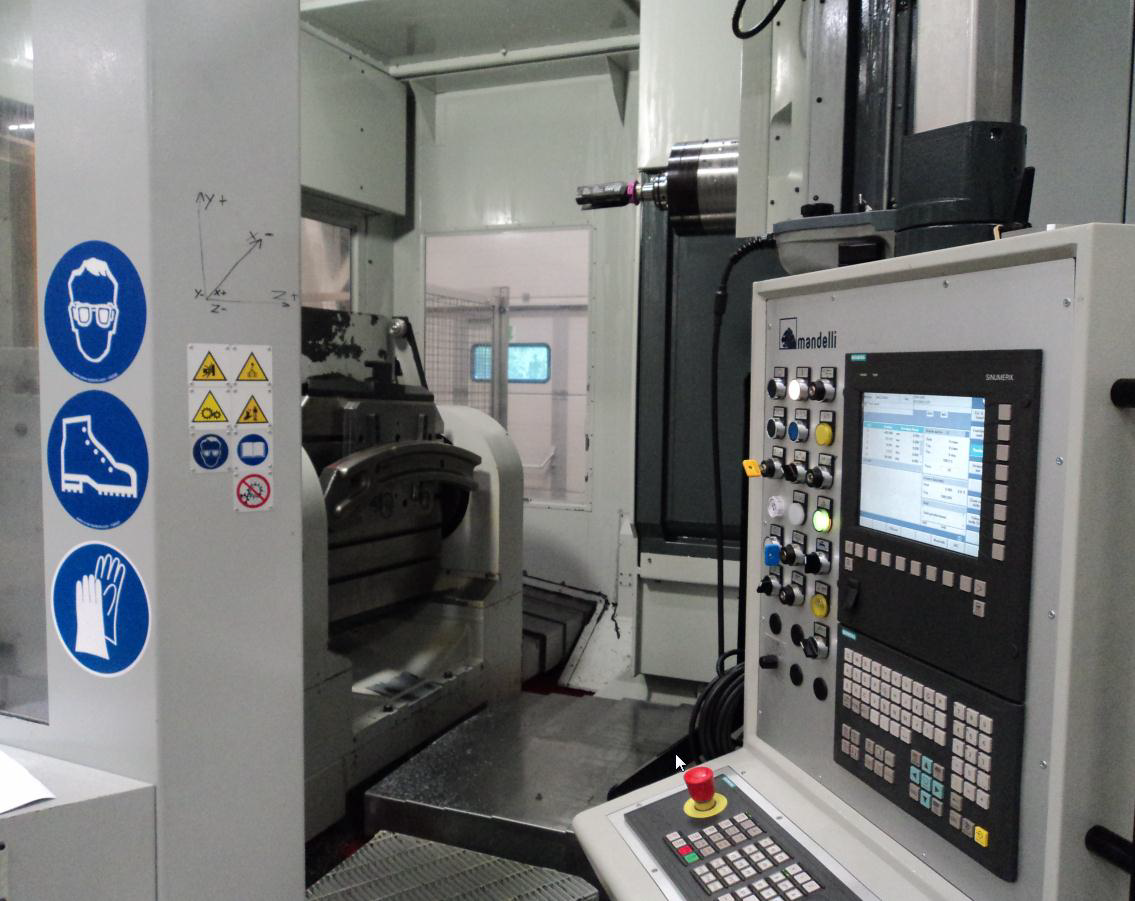

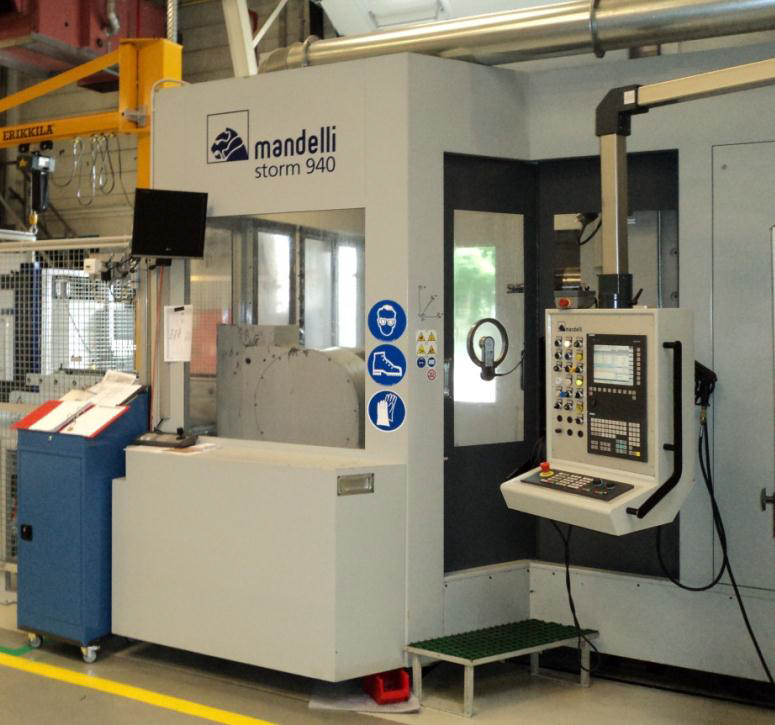

Based on a professional 5-axis cnc machine with tilting table, develop a smaller machine that can be used for training.

The right start, for students, engineers to know more about this kind of machines

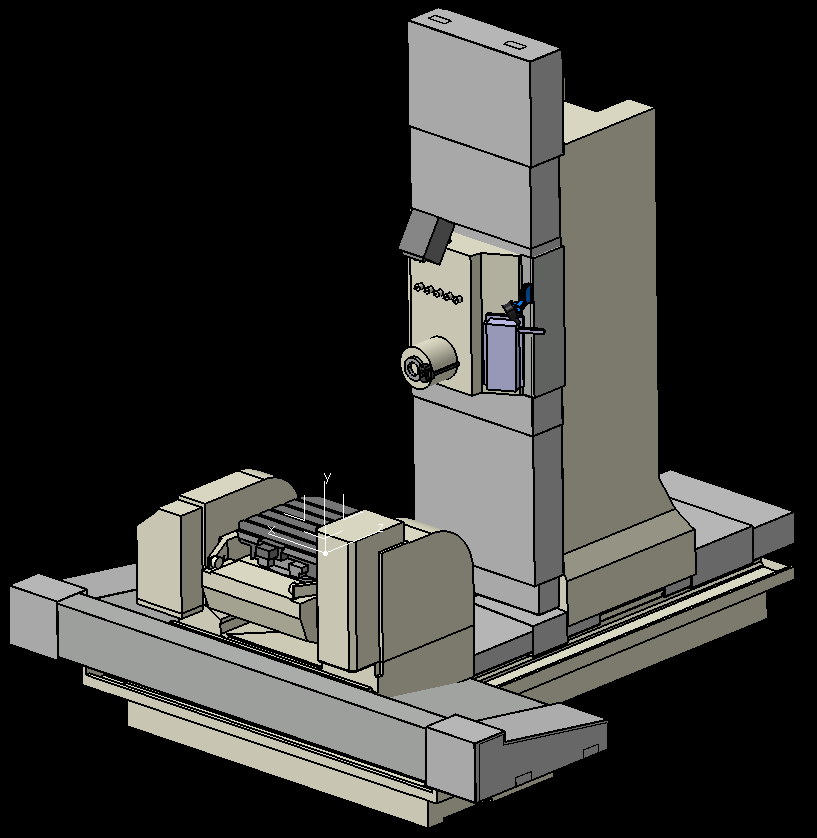

Feasibility study made, small but brave. The machine shall be one-fifth of the original.





New technologies, new materials. Base in epoxy granite gives many advantages.



Hardware compatibility with “low cost” and “high end” controllers such as Siemens 840D SL, Heidenhain and Fanuc













Servo motors – Spindle with atc – Coolant

In – output for future support of accessoires













Lookahead

FeedForward

5-Axis functionalities







Before using the professional 5-axis CNC machine, the smaller machine can be used to train students and engineers in 5-axis functionalities.











The machine will meet all safety ISO requirements
